Standard T.O.S.S.
T.O.S.S. MT2
The smallest standard separator by operating capacity, for dedicated reservoir treatment at a 2 GPM loop rate.
- Treatment-loop flow
- 2 GPM
- Separator tank capacity
- 25 gal
- Setup options
- Dedicated use · Optional casters
Machine sumps, reservoirs & parts washersTramp oil
Tramp oil
removal equipment
Remove tramp oil from your coolant and keep usable fluid in service. Compare T.O.S.S. tramp oil separators, from compact T1 configurations to larger models for machine sumps, reservoirs, and compatible parts-washer fluids.
01 / Standard and larger modelsT.O.S.S.
T.O.S.S.
Tramp oil separators sized for your reservoir
T.O.S.S. models can serve as dedicated tramp oil separators at machine sumps, parts washers, larger reservoirs, or coolant pits. The seven standard models cover treatment-loop rates from 2 to 50 GPM, alongside the larger, skid-mounted T.O.S.S. 150 configuration.
For standard models MT2 through 50, configure the supply pump for air or electric operation, select the skimmer for reservoir access, and match the solids-filtration arrangement to the application. Options include a pre-filter, V-bottom, casters, and extra leg length.
Explore the T.O.S.S. series
Choose how your separator is used
Two setups for standard models MT2 through 50
One reservoir
Dedicated tramp oil separator
When tramp oil keeps returning to the same sump, keep a T.O.S.S. in place for continuous oil removal and clarified-fluid return.
Move between reservoirs
Portable separator with casters
Share one T.O.S.S. between reservoirs by adding optional casters. Treat each sump in turn, then move the unit to the next location.
Choose a T.O.S.S. model
Standard sizes and larger reservoir configurationsComparing sizes: flow is the separator’s treatment-loop rate. Tank capacity is the separator’s working fluid volume, not the size of the reservoir it can treat.
- Standard T.O.S.S.
T.O.S.S. MT3
A compact standard model for a 3 GPM treatment loop, with a 30-gallon separator operating capacity.
- Treatment-loop flow
- 3 GPM
- Separator tank capacity
- 30 gal
- Setup options
- Dedicated use · Optional casters
- Standard T.O.S.S.
T.O.S.S. 05
For dedicated tramp oil removal at a 5 GPM treatment rate, with a 37-gallon operating capacity in the separator.
- Treatment-loop flow
- 5 GPM
- Separator tank capacity
- 37 gal
- Setup options
- Dedicated use · Optional casters
- Standard T.O.S.S.
T.O.S.S. 10
For applications requiring a 10 GPM treatment loop. The separator holds 75 gallons during operation.
- Treatment-loop flow
- 10 GPM
- Separator tank capacity
- 75 gal
- Setup options
- Dedicated use · Optional casters
- Standard T.O.S.S.
T.O.S.S. 15
For reservoir treatment at 15 GPM, with a 110-gallon separator operating capacity and air or electric pump options.
- Treatment-loop flow
- 15 GPM
- Separator tank capacity
- 110 gal
- Setup options
- Dedicated use · Optional casters
- Standard T.O.S.S.
T.O.S.S. 25
For a 25 GPM treatment loop where a higher processing rate is required. The separator operating capacity is 290 gallons.
- Treatment-loop flow
- 25 GPM
- Separator tank capacity
- 290 gal
- Setup options
- Dedicated use · Optional casters
- Standard T.O.S.S.
T.O.S.S. 50
The largest model in the standard range, for a 50 GPM treatment loop with a 400-gallon separator operating capacity.
- Treatment-loop flow
- 50 GPM
- Separator tank capacity
- 400 gal
- Setup options
- Dedicated use · Optional casters
Larger reservoir applicationsT.O.S.S. 150
Keep coolant in service in larger reservoirs and coolant pits with a dedicated T.O.S.S. 150 separator. Pump and skimmer selection are matched to your application.
- Treatment-loop flow
- 150 GPM
- Base
- Skid-mounted
- Tank connections
- Flanged
- Setup
- Dedicated installation
02 / Compact separator configurationsT.O.S.S. T1
T.O.S.S. T1
Portable tramp oil separators for machine sumps

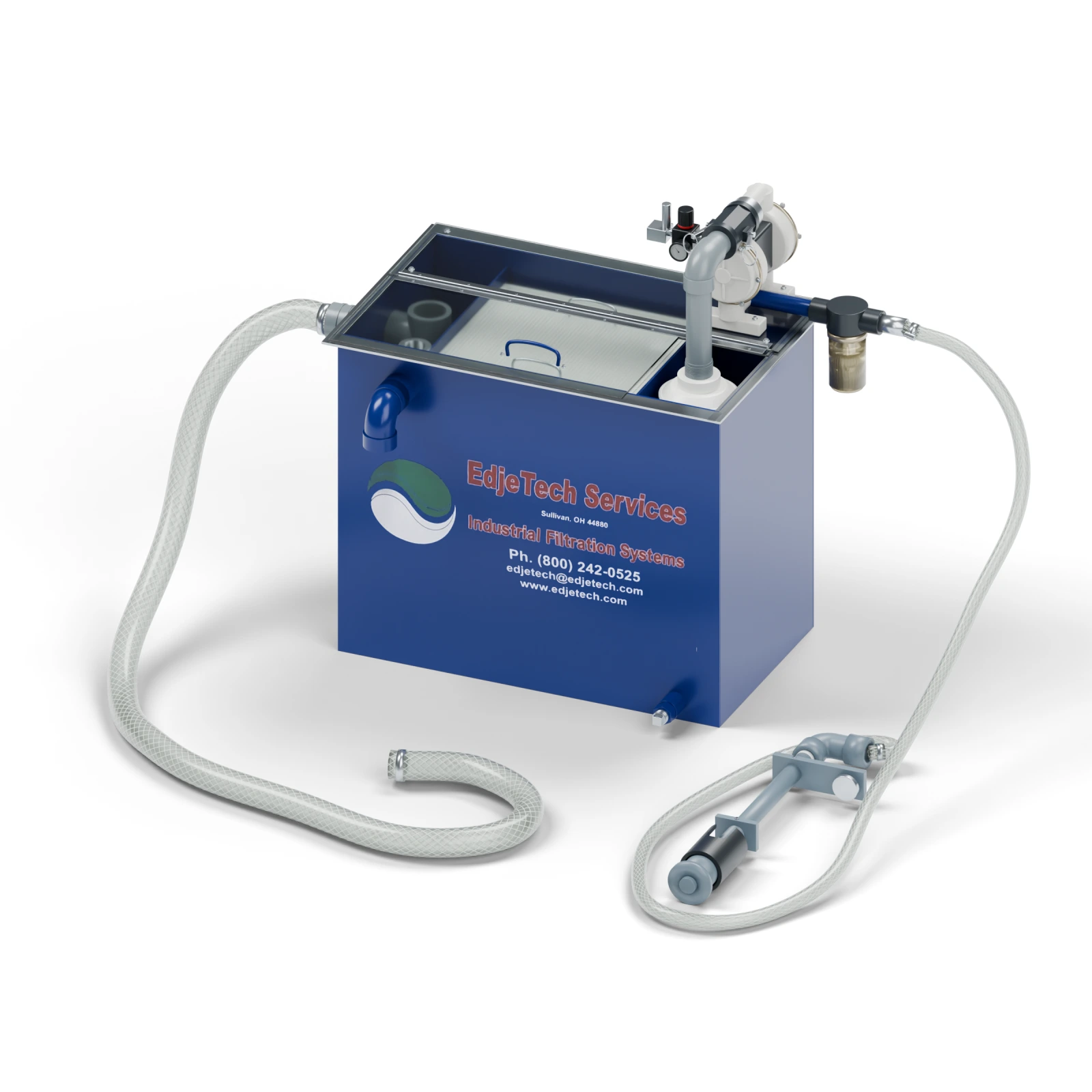

The T1 is a portable tramp oil separator for individual coolant sumps and parts washers. Every T1 configuration combines a 2 GPM air-operated pump, solids filtration, coalescing media, and gravity return in a compact unit.
Choose the pickup for your reservoir, then a cart or high-temperature build where needed. One T1 treats one reservoir at a time; cart-equipped models can move between sumps on a planned rotation.
Explore the T1 separator
Choose a T1 configuration
All models: 2 GPM · Shop air
T.O.S.S. T1 configurationT1-AV
For an individual reservoir with shallow or restricted access where a vertical skimmer can reach the fluid surface.
- Flow
- 2 GPM
- Skimmer
- Vertical
- Cart
- Not included
- Temperature build
- Standard

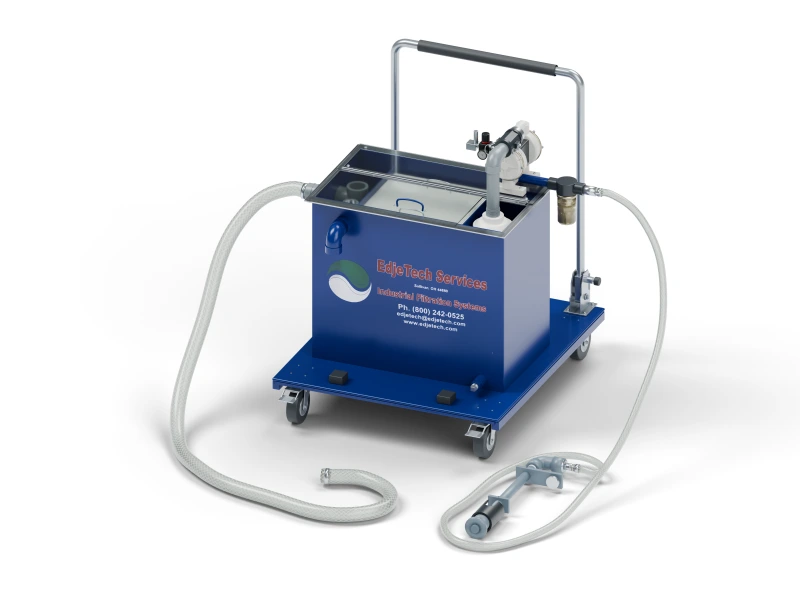

T.O.S.S. T1 configurationT1-AVC
For moving between machine sumps that need a vertical pickup. The cart supports scheduled treatment of one reservoir at a time.
- Flow
- 2 GPM
- Skimmer
- Vertical
- Cart
- Included
- Temperature build
- Standard

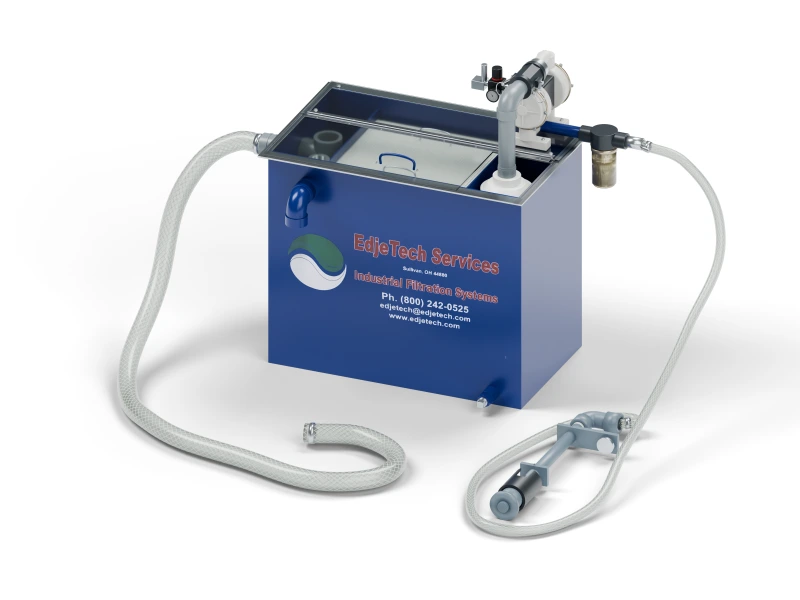

T.O.S.S. T1 configurationT1-AVH
For higher-temperature fluid applications requiring a vertical pickup at a shallow or restricted-access reservoir.
- Flow
- 2 GPM
- Skimmer
- Vertical
- Cart
- Not included
- Temperature build
- High temperature
T.O.S.S. T1 configurationT1-AB
For an individual reservoir where the available surface area and access suit a ballast floating pickup.
- Flow
- 2 GPM
- Skimmer
- Ballast
- Cart
- Not included
- Temperature build
- Standard

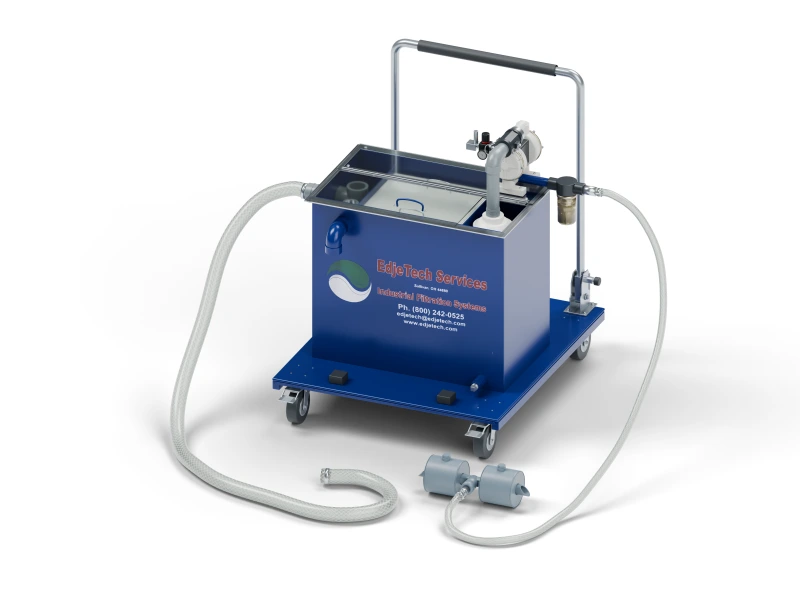

T.O.S.S. T1 configurationT1-ABC
For moving between reservoirs served by a ballast floating pickup. The cart keeps the separator mobile between treatment locations.
- Flow
- 2 GPM
- Skimmer
- Ballast
- Cart
- Included
- Temperature build
- Standard

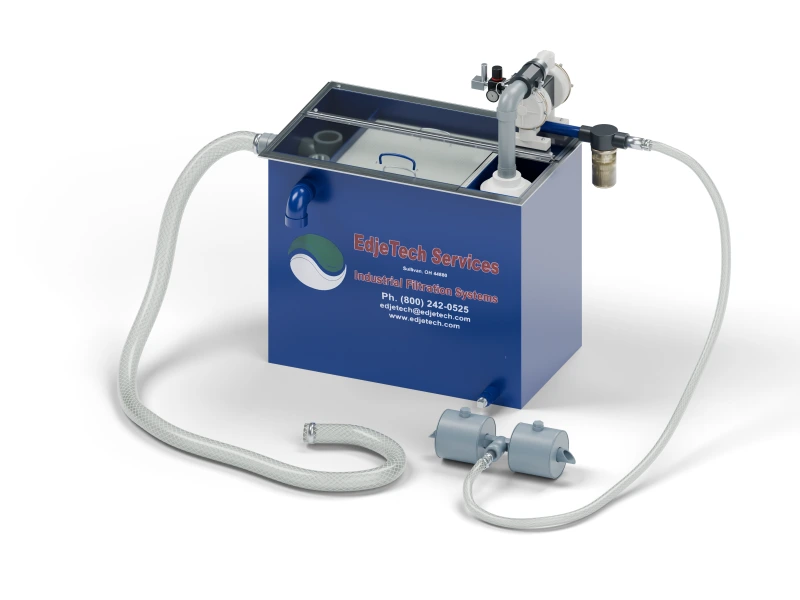

T.O.S.S. T1 configurationT1-ABH
For higher-temperature fluid applications where a ballast floating pickup suits the reservoir and available access.
- Flow
- 2 GPM
- Skimmer
- Ballast
- Cart
- Not included
- Temperature build
- High temperature

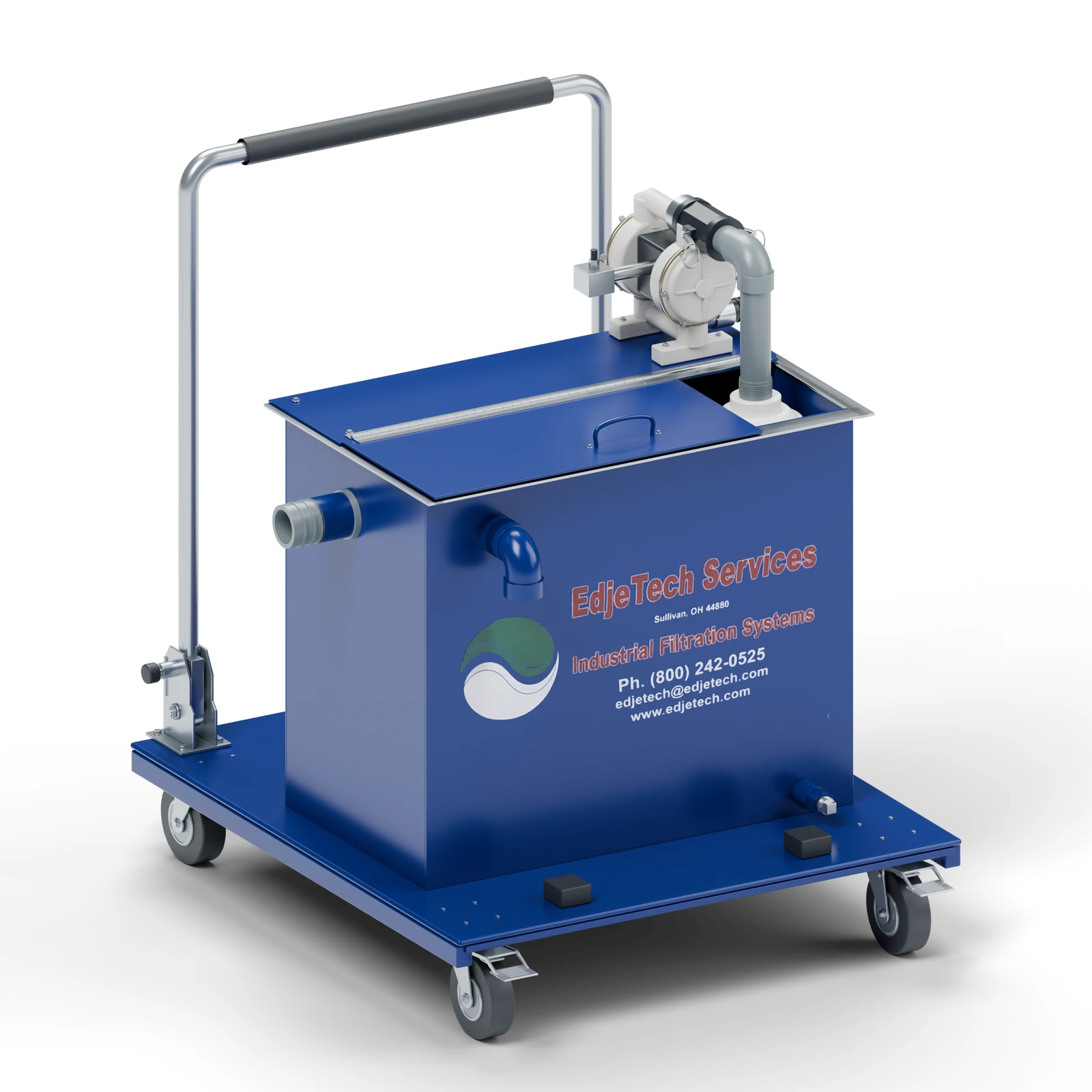

Cart-equipped configurations
One separator. A planned route between sumps.
The T1-AVC and T1-ABC include a cart for moving between reservoirs. Treat each sump in turn, allowing enough operating time before moving the separator to the next location.
Also available through the T1 rental programWorking around your operationChoose a portable or
Choose a portable or
dedicated separator
Move between sumps
Cart-equipped T1 configurations and standard T.O.S.S. separators with optional casters can move between sumps as portable units. Treat each reservoir individually before moving the separator to the next location.
Dedicated tramp oil separators
For continuous tramp oil removal at one machine sump, parts washer, or larger reservoir, keep a dedicated separator in place. It removes oil and returns clarified fluid to the same reservoir.
Match the required treatment rate
Standard models provide a wider flow range. Oil loading, fluid behavior, reservoir volume, and available operating time also determine the size and configuration.

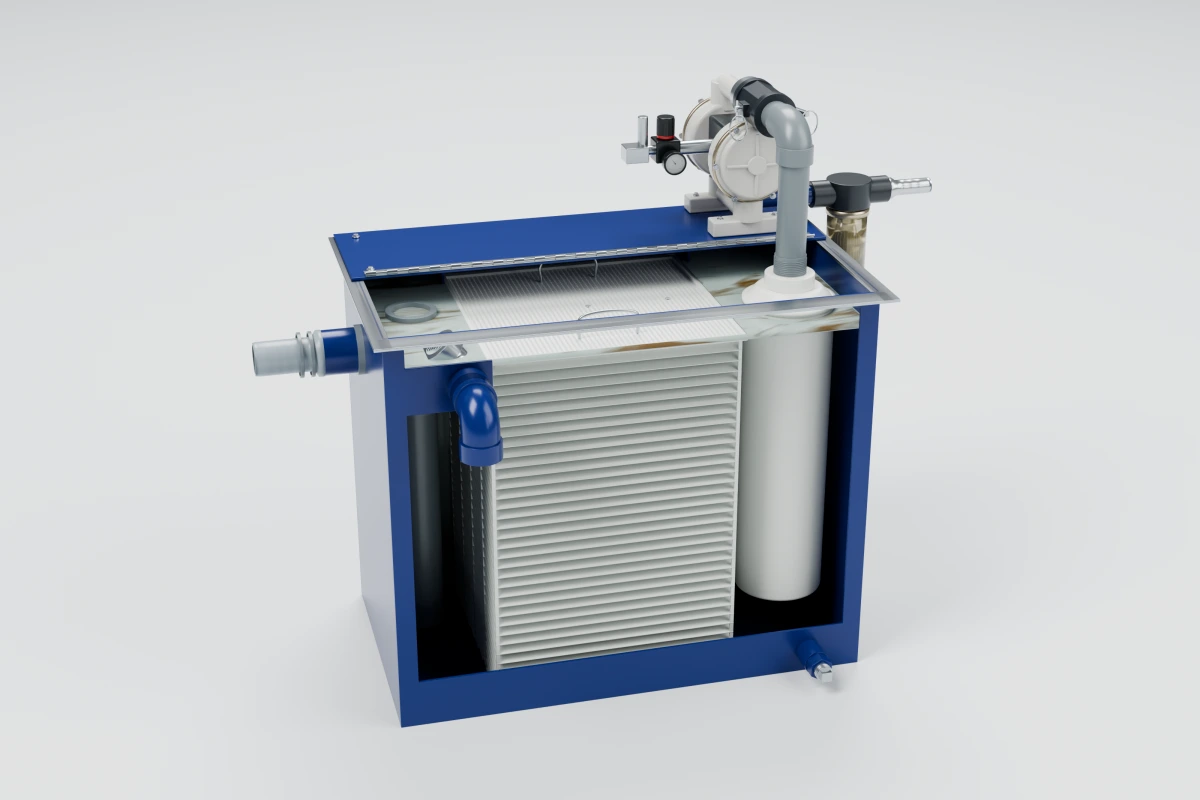

The separation processHow coalescing separators
How coalescing separators
remove tramp oil
T.O.S.S. coolant coalescers combine surface pickup, solids filtration, and oil separation. They remove free-floating, mechanically dispersed, and loosely emulsified tramp oil while returning clarified fluid to the reservoir.
- AOil-rich coolant inlet
- BBag filter
- CCoalescing media
- DRecovered oil outlet
- ECoolant return
- 01
Collect oil-rich fluid
The coolant oil skimmer draws fluid into the separator through the supply pump.
- 02
Filter suspended solids
The filter captures solids before the fluid enters the coalescing section.
- 03
Bring oil droplets together
Coalescing media combines small, separable droplets so they rise for removal.
- 04
Return clarified fluid
Clarified coolant returns by gravity; the separated oil drains through its own outlet.
Equipment for your operation
Request a quote Keep usable coolant in service
Remove recurring tramp oil from your reservoirs with equipment sized for your operation.
